DFUSION /3 Range

Meet the whole family

DFUSION /3 MINI
Small and residential facilities
DFUSION /3
Industrial sector
DFUSION /3 PRO
Critical infrastructures
Connected to the CMS
70m day/night camera
Integrated with CMS, VMS and PSIM
70m day/night camera
320 m thermal camera
Integrated with CMS, VMS and PSIM
128m day/night camera
555 m thermal camera

Features

Intruders
Intruders
Intruders
Vehicle types
Vehicle types
Vehicle types
Animals
Animals
Animals
Sabotage
Sabotage
Sabotage
Behaviours
Behaviours
Behaviours
Super rules
Super rules
Super rules
ONVIF compatible
ONVIF compatible
ONVIF compatible
Integrated with CMS
Integrated with CMS
Integrated with CMS
Integrated with CMS, VMS and PSIM
Integrated with CMS, VMS and PSIM
Scalable
Scalable
Threat levels
Threat levels
Maps in action
Maps in action
Virtual IR
Image stabilizer
Smart PTZ
ATK PRO

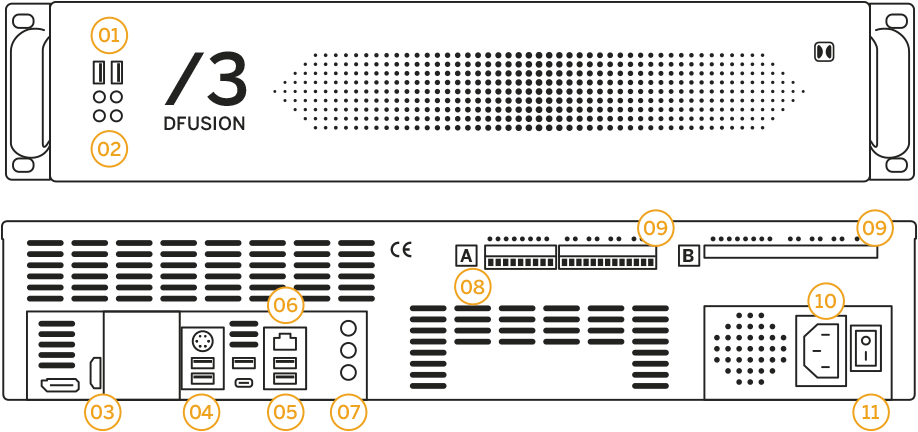

DFUSION & DFUSION /3 PRO

  1. 2 USB 2.0 connections
  2. 1 power switch
  3. 1 HDMI connection
  4. 2 USB 3.0 connections
  5. 2 USB 2.0 connections
  6. 1 RJ45 10/100/1000 network connector
  7. 1 analog stereo audio jack
  8. 8 N/A or N/C inputs
  9. 4/8/12/16 relay outputs - optional
  10. 1 power cord slot
  11. 1 power switch

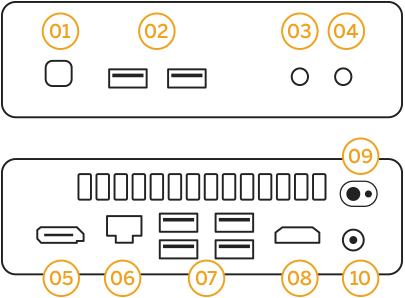

DFUSION /3 MINI

  1. Power button
  2. USB 3.2 Gen2 Type C
  3. USB 3.2 Gen2 Type A
  4. Headset Jack
  5. USB 2.0 Type A
  6. 2.5 Gig Lan
  7. USB 3.2 Gen2 Type A
  8. Display Port 1.4
  9. USB 3.2 Gen2 Type C with Display Port
  10. HDMI 2.1
  11. Power input
I/O device (optional)
  1. 8 digital inputs
  2. 4/6 relays

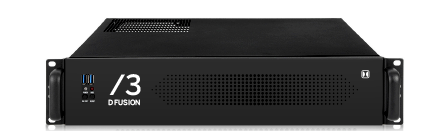

DFUSION & DFUSION /3 PRO
Processor
INTEL
Working temperature
0ºC to 45ºC at a relative humidity of 10 to 90% without condensation
Memory (RAM)
8 / 16 / 32 / 64 GB
Housing
Housing Black rugged metal housing
Hard drive
NVMe (Solid State Drive)
Device dimensions
482 x 90 x 300 mm (W x H x D) (19”x 2U for rack-mount)
Power supply
400/500 W. 100 - 240V AC / 60 - 50 Hz + 10%
Package dimensions
520 x 150 x 450 mm (W x H x D)
Power consumption
Approx. 130 W at full load
Weight
8 Kg
Power cord and plug
1.5 m cable with IEC connector
Communication protocols
TCP/IP, SMTP, HTTP, HTTPS, FTP, RTSP and ONVIF
Environmental class
ll (Indoor - General)
Data protection
Digital signature
Storage temperature
-20ºC to 60ºC with a relative humidity of 10 to 90% without condensation
GPU
NVIDIA
Optional
Relay outputs
Internal: 4/8/12/16 Additional external: 4/8/12/16
Daview AMS
Alarm management for CMS or control center with ClickThruTM simplicity
Input signals
Internal device, 8 inputs

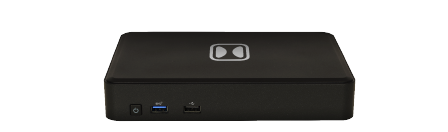

DFUSION /3 MINI
Processor
INTEL
Device dimensions
4 channels - 135 x 36 x 115 mm / 6 channels - 117 x 37 x 112 mm (W x H x D)
Memory (RAM)
8 GB
Package dimensions
330 x 60 x 200 mm (W x H x D)
Hard drive
NVMe (Solid State Drive)
Package weight
1.5 Kg
Power supply
DC 12-19V, 65W (external power supply)
Environmental class
II (Indoor - General)
Power consumption
4 channels approx. 30 W at full load / 6 channels approx. 50 W at full load
Weight
4 channels - 480 gr / 6 channels 533 gr
Operating temperature
0ºC to 35ºC
Communication protocols
TCP/IP, SMTP, HTTP, HTTPS, FTP, RTSP and ONVIF
Storage temperature
-40ºC to 60ºC
Data protection
Digital signature
Housing
Ultra compact housing
Optional
Relay outputs
External USB device, 4/6 outputs (expandable up to 32)
Daview AMS
Alarm management for CMS or control center with ClickThruTM simplicity
Input signals
USB external device, 8 inputs

Thermal camera range chart

DFUSION /3
f (mm)
Height (m)
Sensor
HFOV (o)
Blind distance (m)
Distance (m)
7
12
384x288
36º
7
70
9
17
640x480
62º
3
65
10
17
640x480
57º
3
70
10
12
384x288
26º
11
100
13
17
400x300
29º
8
100
13
17
640x480
45º
5
110
15
17
640x512
40º
7
120
15
12
384x288
17º
17
155
17
12
384x288
15º
18
175
19
17
400x300
19º
15
140
19
17
640x480
32º
9
145
24
12
384x288
11º
26
235
25
17
400x300
15º
18
180
25
17
640x480
25º
12
180
25
17
640x512
25º
11
185
25
12
384x288
11º
29
245
35
17
400x300
11º
16
240
35
17
640x480
18º
17
240
35
12
384x288
8
39
320
DFUSION /3 PRO
f (mm)
Height (m)
Sensor
HFOV (o)
Blind distance (m)
Distance (m)
17
12
384x288
15º
19
220
19
17
400x300
20º
15
180
19
17
640x480
32º
9
185
25
17
640x512
25º
11
230
25
12
384x288
11º
29
300
35
17
640x512
18º
15
300
35
12
384x288
8º
39
390
50
17
640x512
12º
23
395
60
17
640x480
10º
29
445
75
17
640x512
8º
31
505
100
17
640x512
6º
42
555

Day/Night Camera Range Chart

DFUSION /3 MINI
f (mm)
Height (m)
Sensor
HFOV (o)
Blind distance (m)
Distance (m)
3
4
(1/3)”
81º
3
27
10
4
(1/3)”
29º
13
70
DFUSION /3
f (mm)
Altura (m)
Sensor
HFOV (o)
Distancia ciega (m)
Distancia (m)
3
4
(1/3)”
81º
3
27
8
4
(1/3)”
35º
10
62
15
4
(1/3)”
19º
19
70
DFUSION /3 PRO
f (mm)
Altura (m)
Sensor
HFOV (o)
Distancia ciega (m)
Distancia (m)
15
4
(1/3)”
19º
19
113
17
4
(1/3)”
11º
21
128
Camera installed 4 m above the ground. The maximum range achieved is the proportion of a 1.8 m tall person located at the top of the image. Distances are shorter in adverse weather conditions. The required temperature difference is 2°C. The minimum observation time for a person is 2 seconds; we recommend 5 seconds. HFoV stands for horizontal field of view.
